TIMKEN
UCP UCF UCFL UCPA UCFC | Self-Aligning | Easy Installation | Long Life

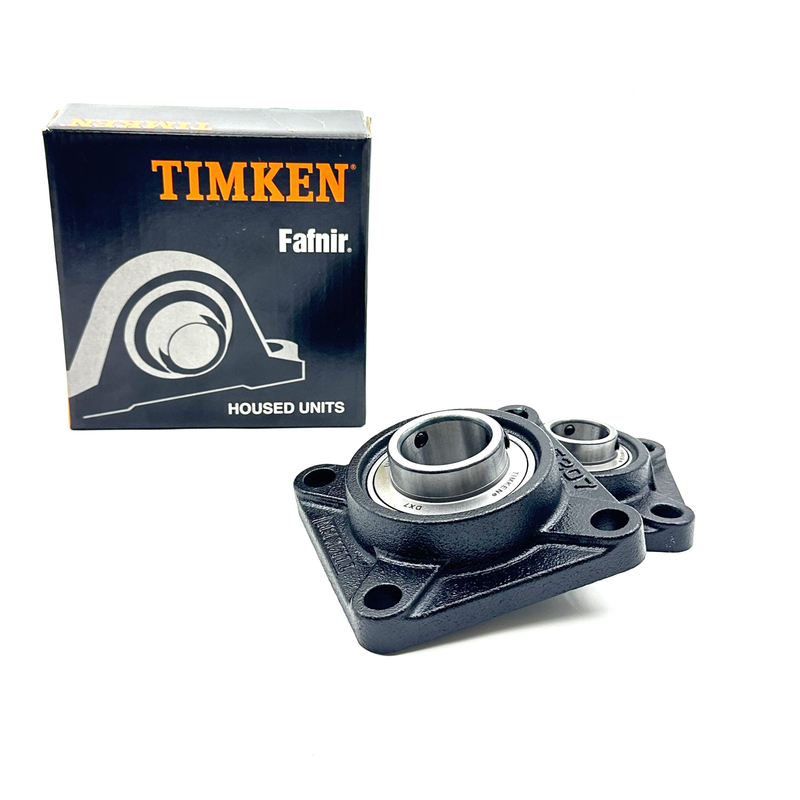

Pillow Block Bearing (also called Mounted Unit Bearing) consists of a bearing insert and a cast iron / stainless steel housing. It features self-aligning function, triple sealing structure, high load capacity, easy installation and wide application. It can compensate shaft deflection and misalignment automatically. Widely used in agricultural machinery, conveyor systems, fans, pumps, ceramics, food machinery, textile machines and general industrial equipment.
Base two-bolt mounting, most common type, for general transmission equipment.
Four-bolt square flange, high stability, for heavy load equipment.
Long oval base, adjustable mounting hole position.
Short base, narrow base, high rigidity, for limited installation space.
Spherical insert bearing, auto-compensate misalignment & shaft deflection.
Excellent dustproof & waterproof performance, protect bearing.
Cast iron housing HT200, high strength, anti-vibration, durable.
Set screw / eccentric locking, fast mounting, convenient maintenance.
GCr15 bearing steel insert, long service life, stable performance.
UCP/UCF/UCFL/UCPA series complete, large stock.
| Model | d (mm) | A (mm) | H (mm) | Series |
|---|---|---|---|---|
| UCP202 | 15 | 68 | 40 | UCP |
| UCP203 | 17 | 76 | 43 | UCP |
| UCP204 | 20 | 86 | 48 | UCP |
| UCP205 | 25 | 100 | 55 | UCP |
| UCP206 | 30 | 114 | 62 | UCP |
| UCP207 | 35 | 127 | 68 | UCP |
| UCP208 | 40 | 140 | 74 | UCP |
| UCP209 | 45 | 152 | 81 | UCP |
| UCP210 | 50 | 165 | 87 | UCP |
| UCF204 | 20 | 70 | 48 | UCF |
| UCF205 | 25 | 80 | 55 | UCF |
| UCF206 | 30 | 90 | 62 | UCF |
| UCF207 | 35 | 100 | 68 | UCF |
| UCF208 | 40 | 110 | 74 | UCF |
| UCFL204 | 20 | 82 | 48 | UCFL |
| UCFL205 | 25 | 94 | 55 | UCFL |
| UCFL206 | 30 | 108 | 62 | UCFL |
| UCFL207 | 35 | 120 | 68 | UCFL |
| UCFL208 | 40 | 134 | 74 | UCFL |
| UCPA204 | 20 | 52 | 48 | UCPA |
| UCPA205 | 25 | 60 | 55 | UCPA |
| UCPA206 | 30 | 68 | 62 | UCPA |
| UCPA207 | 35 | 77 | 68 | UCPA |
| UCFC206 | 30 | 63.5 | 62 | UCFC |
| UCFC207 | 35 | 71.5 | 68 | UCFC |
| UCFC208 | 40 | 80 | 74 | UCFC |
| UCFC209 | 45 | 87 | 81 | UCFC |
| UCFC210 | 50 | 95 | 87 | UCFC |
Insert Bearing: GCr15 high quality bearing steel, long service life
Housing Material: HT200 high strength cast iron, sturdy & durable
Seal Structure: Triple labyrinth seal, dustproof & waterproof
Locking Method: Set screw / eccentric collar locking
Precision Grade: P0, P6, stable performance
Grease: High speed & high temperature lubricating grease
Inner Package: Single box, foam protection, anti-rust treatment
Outer Package: Standard export carton + plywood pallet
Stock Order: 3-7 working days, fast delivery
Bulk Order: 7-15 working days, stable supply
Shipping: Sea, air, express (DHL, FedEx, UPS, TNT, EMS)
Port: Shanghai, Ningbo, Guangzhou, Qingdao
T/T: 30% deposit, 70% balance before shipment
L/C: Irrevocable L/C at sight
Alibaba Trade Assurance: 100% safe payment
Western Union / MoneyGram: For small orders
PayPal: For sample orders
Warranty: 12 months quality warranty
Inspection: 100% strict inspection before shipment
Technical Support: 24 hours online service
Free Service: Free model selection & installation guide
After-Sale: Free replacement for quality problems
Response: Quick reply within 2 hours
20+ Years Professional Bearing Manufacturer
Advanced Production & Testing Equipment
ISO9001, CE, SGS Certified
Complete Models & Large Stock
OEM & ODM Service Available
Export to 80+ Countries & Regions
One-Stop Supply & Professional Service
Contact us for factory direct price, free samples & full technical support!
