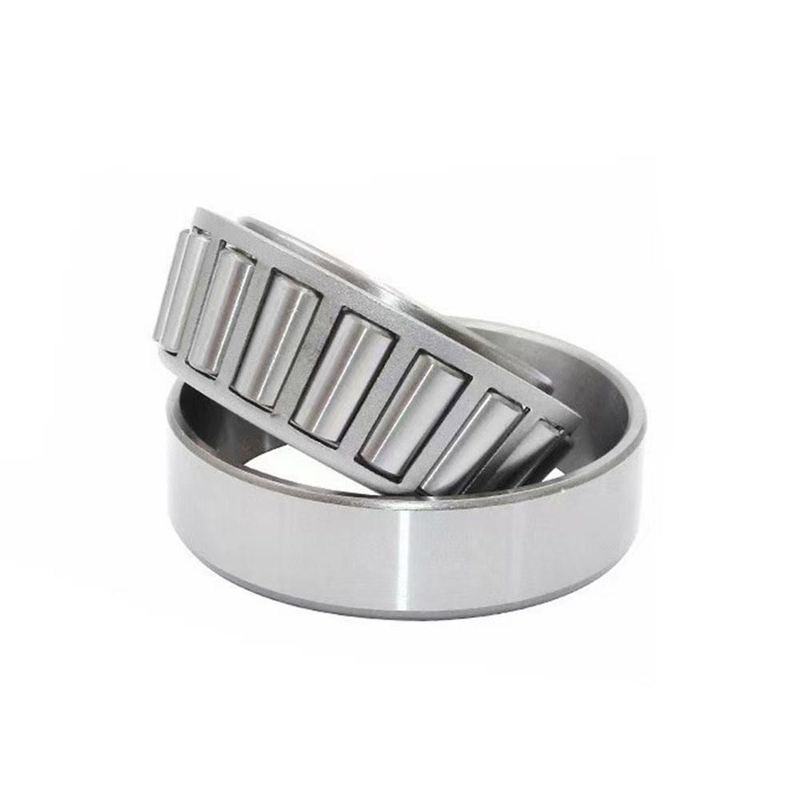

Taper Roller Bearing is a separable radial-thrust rolling bearing, composed of cone (inner ring + roller + cage) and cup (outer ring). It can carry combined radial load, axial load and moment load at the same time. It features high rigidity, high load capacity, low friction, long service life, widely used in automobile wheels, reducers, gearboxes, hubs, rolling mills, mining machinery and other heavy equipment.
Cone and cup can be installed separately, easy to mount/dismount, interchangeable with international brands.
Bear radial load, axial load and overturning moment at the same time, strong stability.
High-quality GCr15 bearing steel, optimized roller design, long service life, low noise.
Single row, double row, four-row designs for light, medium and heavy-duty applications.
| Model | d (mm) Inner Bore | D (mm) Outer Diam. | T (mm) Width |
| 32004 | 20 | 42 | 15 |
| 32005 | 25 | 47 | 17 |
| 30205 | 25 | 52 | 15 |
| 30304 | 20 | 52 | 15 |
| 32205 | 25 | 52 | 18 |
| 32305 | 25 | 62 | 24 |
| 30206 | 30 | 62 | 16 |
| 30207 | 35 | 72 | 17 |
| 30208 | 40 | 80 | 18 |
| 30209 | 45 | 85 | 19 |
Cone (Inner Ring) + Cup (Outer Ring) – separable design
Tapered Rollers – inclined contact, high load capacity
Cage – stamped steel or brass, guide rollers stably
Preload adjustable – improve rigidity and precision
| Item | Value |
|---|---|
| Model | M249749 |
| Specification | 120*180*46mm |
| Material | GCr15 / 20Cr2Ni4A Bearing Steel |
| Precision | P0, P6, P5, P4 |
| Clearance | C0, C1, C2, C3, C4 |
| Type | Single Row / Double Row / Four Row |
| Application | Automobile Hub, Reducer, Gearbox, Rolling Mill |
Inner: plastic bag, tube, single box, anti-rust treatment
Outer: standard export carton + plywood pallet
Stock order: 3–7 working days
Bulk order: 7–15 working days
Shipping: sea, air, express(DHL, FedEx, UPS)
Contact us for factory direct price & full technical support!
