| Quantity: | |
|---|---|
Basic Info.
Model NO. | 32202 |
Transport Package | Carton Pallet |
Trademark | SKF |
HS Code | 8482102000 |
Applicable | Industries. Car. Fan. Gearbox |
Specification | 100*180*60.3mm |
Origin | Sweden |
Production Capacity | 500000 |
Packaging &Delivery
Package Size | 12.00cm * 20.00cm * 6.20cm |
Package Gross Weight | 6.850kg |
Product Description
 |  |  |
HIGH DIMENSIONAL ACCURACY
Manufacturing with higher precision than the ordinary ISO standards
Improving production processes
Improve equipment reliability
There are different kinds of taper roller bearings:

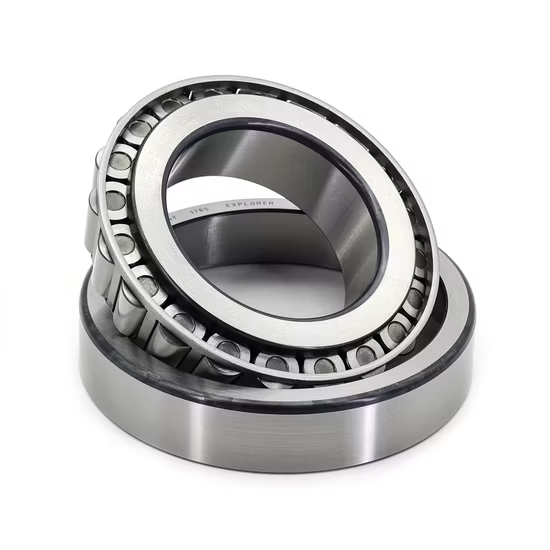

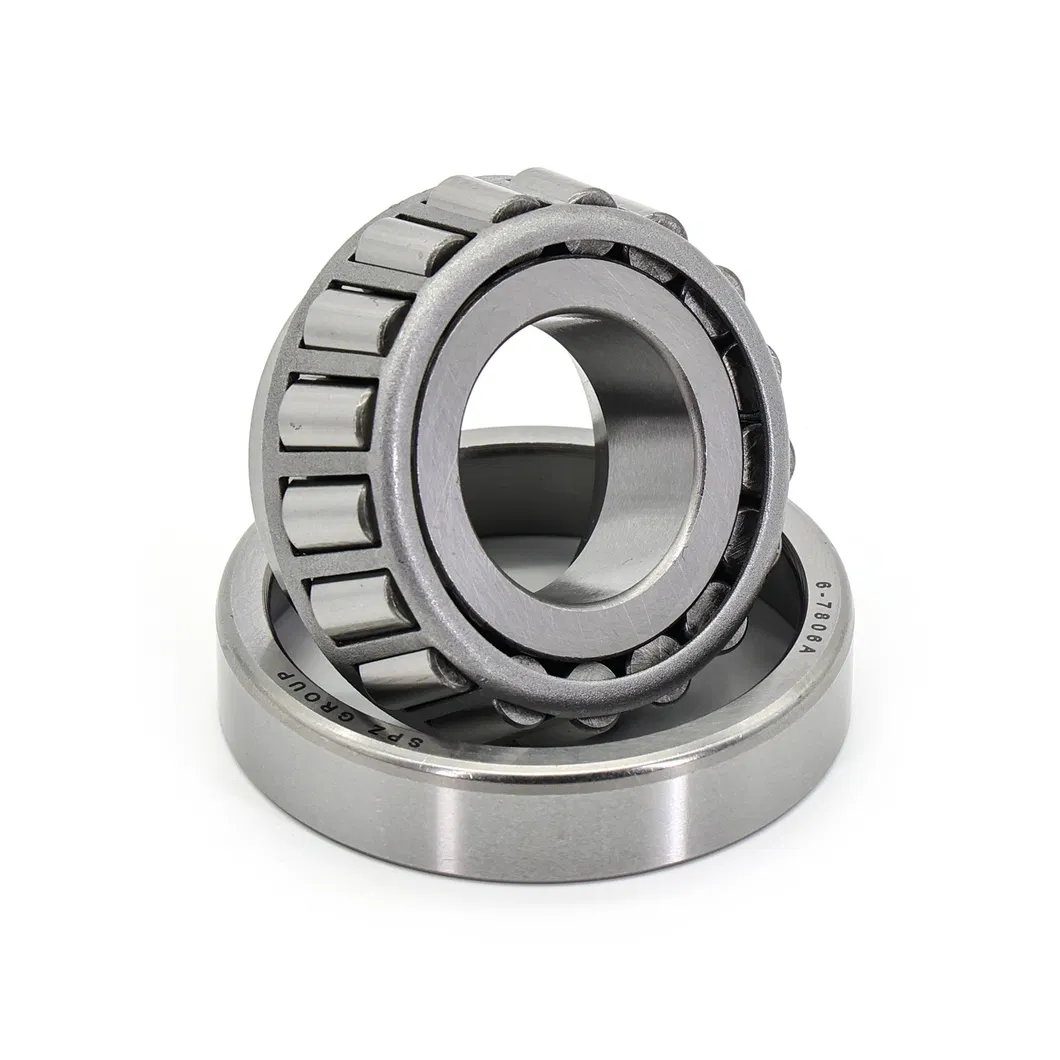

1. Single row taper roller bearing

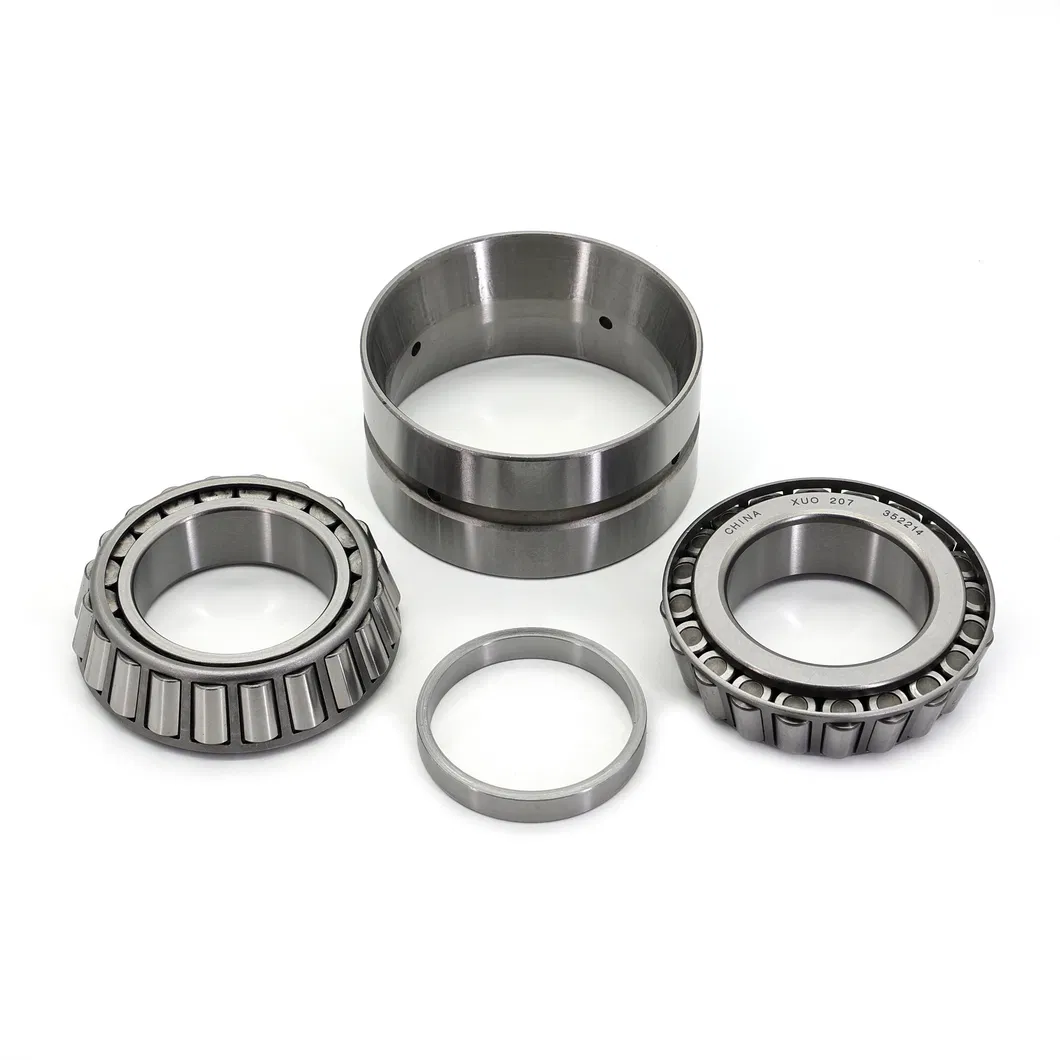

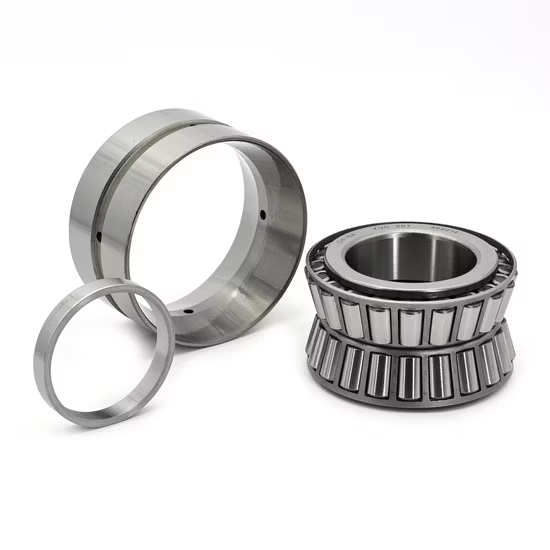

2. Double rows taper roller bearing
3. Four rows taper roller bearing
4. Metric taper roller bearing
5. Inch taper bearing bearing

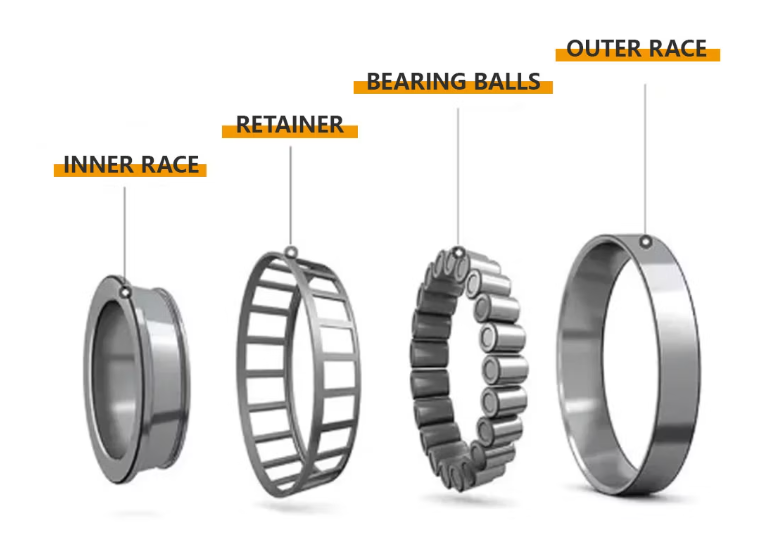

Taper roller bearings Structure:
Inner ring, outer ring, rollers and retainer
Taper roller bearings Applications:
They are widely used in industries such as automobiles, rolling mills, mining, metallurgy, and plastic machinery
Product Name | Taper roller Bearing |
Material | Chrome Steel,GCR15 |
Type | single row,double row,four row |
Size | d:3-110 mm,D:9-240 mm |
Grade | P0,P6,P5,P4,P2 |
Cage | Steel Cage,nylon Cage |
Used For | Precision instruments,low-noise motors,automobiles,motorcycles and general machinery |
Packing | According to the buyer requests for packaging |
Product Parameters
Bearing No. | Dimensions(mm) | Weight | Bearing No. | Dimensions(mm) | Weight | ||||
d | D | T | KG | d | D | T | KG | ||
32202 | 15 | 35 | 11 | 0.053 | 30302 | 15 | 42 | 13 | 0.098 |
30203 | 17 | 40 | 13.25 | 0.079 | 30303 | 17 | 47 | 15.25 | 0.129 |
30204 | 20 | 47 | 15.25 | 0.126 | 30304 | 20 | 52 | 16.25 | 0.165 |
30205 | 25 | 52 | 16.25 | 0.154 | 30305 | 25 | 62 | 18.25 | 0.263 |
30206 | 30 | 62 | 17.25 | 0.231 | 30306 | 30 | 72 | 20.75 | 0.387 |
30207 | 35 | 72 | 18.25 | 0.331 | 30307 | 35 | 80 | 22.75 | 0.515 |
30208 | 40 | 80 | 19.75 | 0.422 | 30308 | 40 | 90 | 25.25 | 0.747 |
30209 | 45 | 85 | 20.75 | 0.474 | 30309 | 45 | 100 | 27.25 | 0.984 |
30210 | 50 | 90 | 21.75 | 0.529 | 30310 | 50 | 110 | 29.25 | 1.28 |
30211 | 55 | 100 | 22.75 | 0.712 | 30311 | 55 | 120 | 31.5 | 1.63 |
30212 | 60 | 110 | 23.75 | 0.904 | 30312 | 60 | 130 | 33.5 | 1.99 |
30213 | 65 | 120 | 24.75 | 1.13 | 30313 | 65 | 140 | 36 | 2.44 |
30214 | 70 | 125 | 26.25 | 1.26 | 30314 | 70 | 150 | 38 | 2.98 |
30215 | 75 | 130 | 27.25 | 1.36 | 30315 | 75 | 160 | 40 | 3.57 |
Bearing No. | Dimensions(mm) | Weight | Bearing No. | Dimensions(mm) | Weight | ||||
d | D | T | KG | d | D | T | KG | ||
32203 | 17 | 40 | 17.25 | 0.102 | 32304 | 20 | 52 | 22.25 | 0.23 |
32204 | 20 | 47 | 19.25 | 0.16 | 32305 | 25 | 62 | 25.25 | 0.368 |
32205 | 25 | 52 | 19.25 | 0.187 | 32306 | 30 | 72 | 28.75 | 0.562 |
32206 | 30 | 62 | 21.25 | 0.287 | 32307 | 35 | 80 | 32.75 | 0.763 |
32207 | 35 | 72 | 24.25 | 0.445 | 32308 | 40 | 90 | 35.25 | 1.04 |
32208 | 40 | 80 | 24.75 | 0.532 | 32309 | 45 | 100 | 38.25 | 1.4 |
32209 | 45 | 85 | 24.75 | 0.573 | 32310 | 50 | 110 | 42.25 | 1.89 |
32210 | 50 | 90 | 24.75 | 0.626 | 32311 | 55 | 120 | 45.5 | 2.37 |
32211 | 55 | 100 | 26.75 | 0.853 | 32312 | 60 | 130 | 48.5 | 2.9 |
32212 | 60 | 110 | 29.75 | 1.17 | 32313 | 65 | 140 | 51 | 3.51 |
32213 | 65 | 120 | 32.75 | 1.55 | 32314 | 70 | 150 | 54 | 4.34 |
32214 | 70 | 125 | 33.25 | 1.64 | 32315 | 75 | 160 | 58 | 5.37 |
32215 | 75 | 130 | 33.25 | 1.74 | 32316 | 80 | 170 | 61.5 | 6.38 |
Bearing No. | Dimensions(mm) | Weight | Bearing No. | Dimensions(mm) | Weight | ||||
d | D | T | KG | d | D | T | KG | ||
32004X | 20 | 42 | 15 | 0.095 | 33005 | 25 | 47 | 17 | 0.129 |
32005X | 25 | 47 | 15 | 0.11 | 33006 | 30 | 55 | 20 | 0.201 |
32006X | 30 | 55 | 17 | 0.17 | 33007 | 35 | 62 | 21 | 0.25 |
32007X | 35 | 62 | 18 | 0.224 | 33008 | 40 | 68 | 22 | 0.306 |
32008X | 40 | 68 | 19 | 0.267 | 33009 | 45 | 75 | 24 | 0.398 |
32009X | 45 | 75 | 20 | 0.337 | 33010 | 50 | 80 | 24 | 0.433 |
32010X | 50 | 80 | 20 | 0.366 | 33011 | 55 | 90 | 27 | 0.651 |
32011X | 55 | 90 | 23 | 0.551 | 33012 | 60 | 95 | 27 | 0.691 |
32012X | 60 | 95 | 23 | 0.584 | 33013 | 65 | 100 | 27 | 0.732 |
32013X | 65 | 100 | 23 | 0.62 | 33014 | 70 | 110 | 31 | 1.07 |
32014X | 70 | 110 | 25 | 0.839 | 33015 | 75 | 115 | 31 | 1.12 |
32015X | 75 | 115 | 25 | 0.872 | 33016 | 80 | 125 | 36 | 1.63 |
