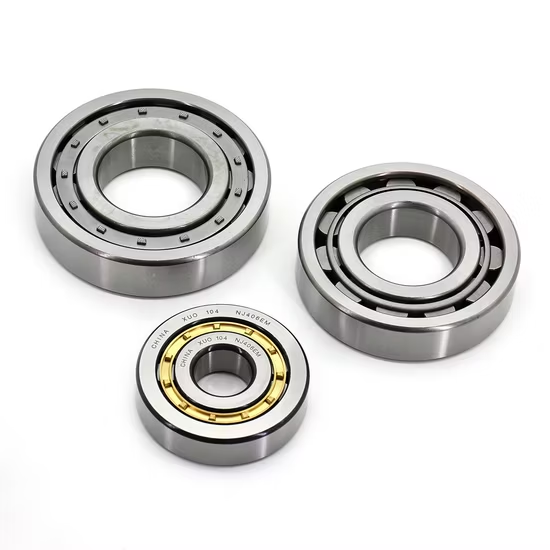

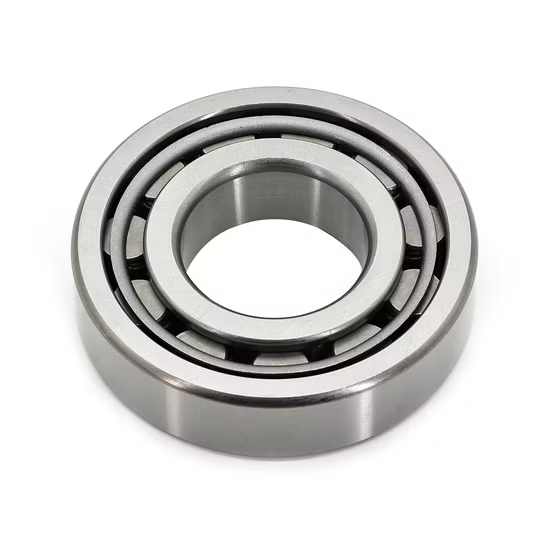

Premium N204 Cylindrical Roller Bearings for Industrial Use Factory Direct Sales

Share to:

Premium N204 Cylindrical Roller Bearings for Industrial Use Factory Direct Sales

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.	N204
Material	Bearing Steel
Load Direction	Radial Bearing
Product Name	Cylindrical Roller Bearing
Applicable	Industries. Car. Fan. Gearbox
Service	OEM ODM
Specification	204714mm
Origin	China
Production Capacity	1000000

Outer Dimension	Small (28-55mm)
Spherical	Aligning Bearings
Separated	Unseparated
Feature	Long Life,High Speed,Low Noise
Lubrication	Grease or Oil
Transport Package	Carton Pallet
Trademark	WSFA
HS Code	8482300000

Packaging &Delivery

Package Size	4.00cm * 6.50cm * 3.50cm
Package Gross Weight	0.108kg

Product Parameters

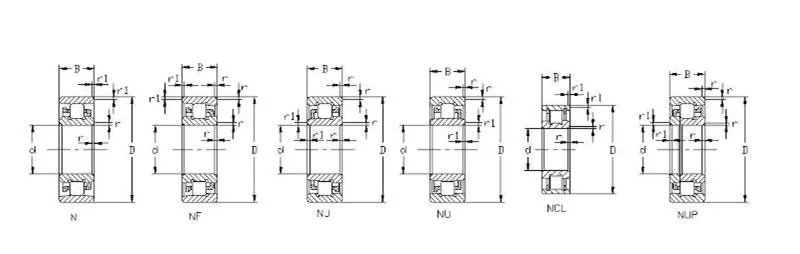

Cylindrical Roller Bearings
Shaft diameter (mm)	Bearing Designation	Boundary Dimensions (mm)					Basic Load Ratings (N)		Limiting Speeds (rpm)		Weight (Kg)
	Current Designation	d	D	B	rsmin	r1smin	Cr Dynamic	Cor Static	Grease	Oil
16	SZ-4101	16	44	8.3			15700	18000			0.07011
17	N203	17	40	12	0.6	0.3	11400	9100	16000	19000	0.078
	NJ203	17	40	12	0.7	0.3	11400	9100	16000	19000	0.069
	NJ203ETN1	17	40	12	0.6	0.6	16900	13800	16000	19000	0.07158
	NU203	17	40	12	0.6	0.3	11400	9100	16000	19000	0.07
	NU203ETN1	17	40	12	0.6	0.3	16900	13800	16000	19000	0.06654
	NJ2203E	17	40	16	0.6	0.3	22800	20300	13800	16400	0.092
20	N204	20	47	14	1	0.6	15800	13100	13800	16400	0.133
	NF204	20	47	14	1	0.6	15800	13100	13800	16400	0.11
	NJ204	20	47	14	1.1	0.7	17000	14400	13800	16400	0.14
	NU204	20	47	14	1	0.6	15800	13100	13800	16400	0.135
	NU204/C3	20	47	14	1	0.6	14400	13100	13800	16400	0.1067
	N304	20	52	15	1.1	0.6	21800	17700	11400	13800	0.1447
	NJ304	20	52	15	1.1	0.6	21800	17700	11400	13800	0.1575
	NU304	20	52	15	1.1	0.6	21800	17700	11400	13800	0.1519
	NUP304ETN1	20	52	15	1.1	0.6	31500	26800	10600	13100	0.15582
	NJ2304ETN1	20	52	21	1.1	0.6	42000	38700	10000	13000	0.21267
25	N205	25	52	15	1	0.6	17000	14900	11400	13800	0.1328
	NF205	25	52	15	1	0.6	17000	14900	11400	13800	0.1363
	NJ205	25	52	15	1	0.6	17000	14900	11400	13800	0.1484
	NJ205E	25	52	15	1	0.6	29900	28400	10600	13100	0.134
	NJ205ETN1	25	52	15	1	0.6	29900	28400	10600	13100	0.1351
	NU205	25	52	15	1	0.6	17000	14900	11400	13800	0.133
	NU205/C3	25	52	15	1	0.6	15400	14900	11400	13800	0.133
	NU205E	25	52	15	1	0.6	29900	28400	10600	13100	0.13013
	NU205ETN1	25	52	15	1	0.6	29900	28400	10600	13100	0.13107
	NU205L	25	52	15	1	0.6	20300	18900	10600	13100	0.13774
	NUP205	25	52	15	1	0.6	17000	14900	11400	13800	0.1495
	NCL205	25	52	15	1	0.6	24600	24300	10600	13100	0.145
	N2205	25	52	18	1.1	0.6	24100	23300	10600	13100	0.187
	NJ2205	25	52	18	1	1	24100	23300	10600	13100	0.17
	NU2205	25	52	18	1.1	0.6	24100	23300	10600	13100	0.1653
	NU2205/C3	25	52	18	1	0.6	21400	22800	10600	13100	0.1653
	NU2205EV	25	52	18	1	0.6	41400	43300	9200	11400	0.1652
	N305	25	62	17	1.1	1.1	29100	25200	9200	11400	0.2343
	N305ENTN1/C3	25	62	17	1.1	0.5	41500	37400	9200	11400	0.2334
	NF305	25	62	17	1.1	1.1	29100	25200	9200	11400	0.2433
	NJ305	25	62	17	1.1	1.1	29100	25200	9200	11400	0.2458
	NJ305/C3	25	62	17	1.1	1.1	29100	25200	9200	11400	0.2458
	NJ305E	25	62	17	1.1	1.1	41500	37400	9200	11400	0.271
	NJ305ETN1	25	62	17	1.1	1.1	41500	37400	8900	10500	0.24364
	NU305	25	62	17	1.1	1.1	29100	25200	9200	11400	0.2397
	NUP305	25	62	17	1.1	1.1	29100	25200	9200	11400	0.25551
	NUP305E	25	62	17	1.1	1.1	41500	37400	8900	10500	0.28505
	NUP305N	25	62	17	1.1	1.1	29100	25200	9200	11400	0.263
	NCL305	25	62	17	1.1	1.1	39500	37800	8900	10500	0.246
	NU2305E	25	62	24	1.1	1.1	57000	56100	2250	4500	0.36939
	NJ2305E	25	62	24	1.1	1.1	57000	56100	7800	9200	0.37739
	NJ2305EV/C4	25	62	24	1.1	1.1	66300	69700	7800	9200	0.3692
	NJ2305VH	25	62	24	1.1	1.1	63000	57000	2250	4500	0.3695
	NUP2305E	25	62	24	1.1	1.1	57000	56100	7800	9200	0.37657
	NCL2305	25	62	24	1.5	1.1	57700	61400	7800	9200	0.358
30	NUP44494	30	61.93	23.8	1.1	1.1	63300	75500	2500	5000	0.34
	N206	30	62	16	1	0.6	23900	22200	9400	11300	0.2038
	N206E	30	62	16	1	0.6	36800	34400	8900	10500	0.24
	NJ206	30	62	16	1	0.6	23900	22200	9400	11300	0.2338
	NJ206E	30	62	16	1	0.6	39100	37300	8900	10500	0.2308
	NJ206ETN1	30	62	16	1	0.6	39100	37300	8900	10500	0.2308
	NU206	30	62	16	1	0.6	23900	22200	9400	11300	0.2113
	NU206E	30	62	16	1	0.6	39100	37300	8900	10500	0.2231
	NUP206E	30	62	16	1	0.6	39100	37300	8900	10500	0.2354
	NUP206E/C4	30	62	16	1	1	39100	37300	8900	10500	0.2351
	NCL206	30	62	16	1	0.6	33800	35100	8900	10500	0.224
	NJ2206ETN1	30	62	20	1	0.6	48900	49800	8900	10500	0.25792
	NJ2206E	30	62	20	1	0.6	48900	49800	8900	10500	0.3497
	NJ2206E.TVP	30	62	20	1	1	48900	49800	2500	5000	0.25792
	N306	30	72	19	1.1	1.1	35900	31900	7800	9200	0.3448
	NJ306	30	72	19	1.1	1.1	35900	31900	7800	9200	0.3524
	NJ306E	30	72	19	1.1	1.1	53200	50200	7000	8500	0.40082
	NJ306E/C3	30	72	19	1.1	1.1	53200	50200	7000	8500	0.40082
	NU306	30	72	19	1.1	1.1	35900	31900	7800	9200	0.3459
	NU306E	30	72	19	1.1	1.1	53200	50200	7800	9200	0.39282
	NU306MN/P63	30	72	19	1.1	1.1	35100	38600	7800	9200	0.381
	NUP306	30	72	19	1.1	1.1	35900	31900	7800	9200	0.3695
	NFP306	30	72	19	1.1	1.1	35900	31900	7800	9200	0.37
	RO-694	30	80	23	1.1	1	75400	81100	7800	9200	0.60065
32	NCL6/32V	32	62	18	1.1	0.6	53400	56200	7000	8500	0.2367
	NCL6/32V/P6	32	62	18	1.1	0.6	53400	56200	7000	8500	0.2367
	NUP45622	32	75	20	1.1	1.1	50000	44300			0.41125
35	F-45226	35	62	19	1	0.6	50000	53000	2750	5500	0.21513
	R356219	35	62	19	1	0.6	50000	53000	2750	5500	0.21513
	N207	35	72	17	1.1	0.6	31400	28900	8300	9900	0.294
	NF207	35	72	17	1.1	0.6	31400	28900	8300	9900	0.3015
	NJ207	35	72	17	1.1	0.6	31400	28900	8300	9900	0.2995
	NJ207E	35	72	17	1.1	0.6	50200	50100	7800	9200	0.3263
	NU207	35	72	17	1.1	0.6	31400	28900	8300	9900	0.2913
	NUP207	35	72	17	1.1	0.6	31400	28900	8300	9900	0.32451
	NU2207E	35	72	23	1.1	0.6	61600	65200	2200	4300	0.4186
	NJ2207E	35	72	23	1.1	0.6	61600	65200	6600	7900	0.4296
	NUP2207E	35	72	23	1.1	0.6	61600	65200	6600	7900	0.4444
	N307	35	80	21	1.5	1.1	46400	43000	7700	9200	0.4576
	NF307	35	80	21	1.5	1.1	46400	43000	7700	9200	0.4736
	NJ307	35	80	21	1.5	1.1	46400	43000	7700	9200	0.4806
	NJ307/C3	35	80	21	1.5	1.1	46400	43000	1700	3400	0.48365
	NJ307E	35	80	21	1.8	1.3	66500	65300	6600	7900	0.4872
	NJ307EV/C4YA	35	80	21	1.5	1.1	78400	81000	6100	7400	0.5015
	C3G42307EK	35	80	21	1.8	1.3	66500	65300	7700	9200	0.4872
	NU307	35	80	21	1.5	1.1	46400	43000	7700	9200	0.4676
	NU307EV1	35	80	21	1.5	1.1	71000	71000	6600	7900	0.51243
	NUP307E	35	80	21	1.5	1.1	66500	65300	6600	7900	0.5234
	NUP307EN	35	80	21	1.5	1.1	66500	65300	6600	7900	0.5371
	NUP307EV	35	80	21	1.5	1.1	77500	79800	6600	7900	0.5139
	NUP307EV/C3	35	80	21	1.5	1.1	77500	79800	6600	7900	0.5139
	510148	35	80	23	1.1	0.6	65750	77600	6600	7900	0.571
	NJ2307E	35	80	31	1.5	1.1	93000	100500	6600	7900	0.784
	NU2307EV4	35	80	31	1.5	1.1	99000	109000	6600	7900	0.76425
	NUP2207X1V/C9YB	35	90	23	1.1	0.6	89600	93600			0.799
40	N208	40	80	18	1.1	1.1	43700	42900	7300	8700	0.3708
	NF208	40	80	18	1.1	1.1	43700	42900	7300	8700	0.3838
	NJ208	40	80	18	1.1	1.1	43700	42900	7300	8700	0.3973
	NU208	40	80	18	1.1	1.1	43700	42900	7300	8700	0.3758
	NUP208	40	80	18	1.1	0.6	43700	42900	7300	8700	0.3985
	NUP208/P6	40	80	18	1.1	1.1	43700	42900	7300	8700	0.3986
	NU2208E	40	80	23	1.1	1.1	72300	77600	2000	3800	0.51782
	NJ2208E	40	80	23	1.1	1.1	72300	77600	6600	7900	0.53082
	NJ2208E.TVP3.C3	40	80	23	1.1	1.1	70600	75200	2000	3800	0.48967
	NJ2208EV	40	80	23	1.1	1.1	84700	95100	6100	7400	0.5116
	N308	40	90	23	1.5	1.5	58600	56900	6600	7900	0.6365
	NF308	40	90	23	1.5	1.5	58600	56900	6600	7900	0.6699
	NF308M/P6	40	90	23	1.5	1.5	58600	56900	6600	7900	0.7199
	NJ308	40	90	23	1.5	1.5	58600	56900	6600	7900	0.6793
	NJ308ETN1	40	90	23	1.5	1.5	83200	81500	1500	3000	0.6635
	NJ308/C3	40	90	23	1.5	1.5	58600	56900	1500	3000	0.6793
	NU308	40	90	23	1.5	1.5	58600	56900	6600	7900	0.6661
	NUP308E	40	90	23	1.5	1.5	82200	80300	6100	7400	0.696
	NUP308N	40	90	23	1.5	1.5	58600	56900	6600	7900	0.72078
	NUP308EN	40	90	23	1.5	1.5	82200	80300	6100	7400	0.7254
	NUP308ENV	40	90	23	1.5	1.5	97200	101000	5900	7000	0.7025
	NJ2308E	40	90	33	1.5	1.5	113200	121100	5900	7000	1.037
	NJ2308E.TVP3	40	90	33	1.5	1.5	121000	140700	1500	3000	0.95869
	NUP2308E	40	90	33	1.5	1.5	121000	140700	1500	3000	1.061
45	N209	45	85	19	1.1	1.1	45900	46900	7100	8500	0.4188
	NF209	45	85	19	1.1	1.1	45900	46900	7100	8500	0.4367
	NF209/C3	45	85	19	1.1	1.1	45900	46900	7100	8500	0.4367
	NF209E	45	85	19	1.1	1.1	63000	66400	6600	7900	0.47644
	NJ209	45	85	19	1.1	1.1	45900	46900	7100	8500	0.4459
	NJ209E	45	85	19	1.1	1.1	63000	66400	6600	7900	0.42995
	NJ209ECP	45	85	19	1.1	1.1	63000	66400	7100	8500	0.42995
	NJ209ETN1/C3	45	85	19	1.1	1.1	63000	66400	7100	8500
	NU209	45	85	19	1.1	1.1	45900	46900	7100	8500	0.434
	NUP2209E	45	85	23	1.1	1.1	76000	84500	6600	7900	0.59384
	NUP2209EN	45	85	23	1.1	1.1	76000	84500	6600	7900	0.58764
	N309	45	100	25	1.5	1.5	72900	69900	5900	7000	0.8239
	NF309	45	100	25	1.5	1.5	72900	69900	5900	7000	0.8684
	NF309M/P6	45	100	25	1.5	1.5	72900	69900	5900	7000	0.70829
	NJ309	45	100	25	1.5	1.5	72900	69900	5900	7000	0.8749
	NJ309E	45	100	25	1.5	1.5	99200	101000	5000	6000	0.9756
	NU309	45	100	25	1.5	1.5	72900	69900	5900	7000	0.8518
	NU309E	45	100	25	1.5	1.5	99200	101000	5000	6000	0.9799
	NUP309	45	100	25	1.5	1.5	72900	69900	5900	7000	0.8944
	NUP309N	45	100	25	1.5	1.5	72900	69900	5900	7000	0.91
	NUP309NR	45	100	25	1.5	1.5	72900	69900	5900	7000	0.91477
	NUP309EN	45	100	25	1.5	1.5	99200	101000	5000	6000	0.9811
	NUP309ENV/C3	45	100	25	1.5	1.5	110500	116100	4500	5300	0.97417
	NUP309ENTN1	45	100	25	1.5	1.5	99200	101000	5000	6000	0.904
	NJ2309E	45	100	36	1.5	1.5	138800	155700	5000	6000	1.38761
	NU2309E	45	100	36	1.5	1.5	138800	155700	5000	6000	1.35761
50	N210	50	90	20	1.1	1.1	48100	50900	6600	7900	0.4752
	NF210	50	90	20	1.1	1.1	48100	50900	6600	7900	0.4982
	NF210C3	50	90	20	1.1	1.1	48100	50900	6600	7900	0.4982
	NF210E	50	90	20	1.1	1.1	65900	71800	6200	7300	0.5312
	NJ210	50	90	20	1.1	1.1	48100	50900	6600	7900	0.4864
	NJ210E	50	90	20	1.1	1.1	65900	71800	6600	7900	0.5302
	NJ210ETN/C3	50	90	20	1.1	1.1	65900	71800	6200	7300	0.4832
	NU210	50	90	20	1.1	1.1	48100	50900	6600	7900	0.4734
	NU210/P6	50	90	20	1.1	1.1	48100	50900	6600	7900	0.4734
	NU210ETN/C3	50	90	20	1.1	1.1	65900	71800	6200	7900	0.4682
	NUP210EN	50	90	20	1.1	1.1	65900	71800	6200	7900	0.5242
	NUP210E	50	90	20	1.1	1.1	65900	71800	6200	7900	0.5262
	NU2210ETN/C3	50	90	23	1.1	1.1	79500	91500	6200	7300	0.5497
	NJ2210ETN1	50	90	23	1.1	1.1	79500	91500	1700	3300	0.5647
	NJ2210E.TVP3.C3	50	90	23	1.1	1.1	77600	88600	1700	3300	0.568
	NJ2210E.TVP3	50	90	23	1.1	1.1	77600	88600	1700	3300	0.568
	NUP2210E	50	90	23	1.1	1.1	79500	91500	6200	7300	0.6366
	N310	50	110	27	2	2	88900	88800	5400	6300	1.0941
	NF310	50	110	27	2	2	88900	88800	5400	6300	1.1012
	NJ310	50	110	27	2	2	88900	88800	5400	6300	1.148
	NJ310E	50	110	27	2	2	112100	116000	5000	6000	1.27325
	NJ310N	50	110	27	2	2	88900	88800	5400	6300	1.153
	NU310	50	110	27	2	2	88900	88800	5400	6300	1.1256
	NUP310	50	110	27	2	2	88900	88800	5400	6300	1.2
	NUP310NV	50	110	27	2	2	128200	144700	5400	6300	1.208
	NUP310ENV/C3	50	110	27	2	2	128200	144700	5000	6000	1.208
	NCL310	50	110	27	2	2	111300	122300	5400	6300	1.17
	N410	50	130	31	2.1	2.1	132300	127600	5400	6300	2.26
	NJ410	50	130	31	2.1	2.1	132300	127600	5400	6300	2.26
55	N211	55	100	21	1.5	1.1	57900	62200	6000	7100	0.6213
	NF211	55	100	21	1.5	1.1	57900	62200	6000	7100	0.6537
	NF211E	55	100	21	1.5	1.1	86100	98700	5400	6500	0.766
	NJ211	55	100	21	1.5	1.1	57900	62200	6000	7100	0.6451
	NJ211/C3	55	100	21	1.5	1.1	50200	32000	6000	7100	0.6451
	NJ211E	55	100	21	1.5	1.1	86100	98700	5400	6500	0.6616
	NJ211ECP	55	100	21	1.5	1.1	86100	98700	5400	6500	0.6616
	NU211	55	100	21	1.5	1.1	57900	62200	6000	7100	0.6301
	NU211E	55	100	21	1.5	1.1	86100	98700	5400	6500	0.7185
	NUP211	55	100	21	1.5	1.1	57900	62200	6000	7100	0.6447
	NUP211E	55	100	21	1.5	1.1	86100	98700	5400	6500	0.7606
	NJ2211E	55	100	25	1.5	1.1	101200	121500	1500	3000	0.8936
	NJ2211E/C3	55	100	25	2	1.1	101200	121500	5400	6500	0.8936
	NUP2211EN/C3	55	100	25	1.5	1.1	101200	121500	5400	6500	0.8924
	NF311E	55	120	29	2	2	138100	144300	4500	5300	1.60325
	NF311E/C3	55	120	29	2	2	140500	147600	4500	5300	1.60145
	NJ311E	55	120	29	2	2	138100	144300	4500	5300	1.637
	NUP311EN	55	120	29	2	2	140500	147600	4500	5300	1.6676
	NUP311ENV/C3	55	120	29	2	2	153800	165700	4500	5300	1.5923
60	N212	60	110	22	1.5	1.5	71800	79800	5400	6500	0.8216
	NJ212	60	110	22	1.5	1.5	71800	79800	5400	6500	0.8361
	NJ212E	60	110	22	1.5	1.5	96200	105600	5000	6000	0.9075
	NU212	60	110	22	1.5	1.5	71800	79800	5400	6500	0.8222
	NU212ETN1/C3	60	110	22	1.5	1.5	96200	105600	5000	6000	0.79458
	NUP212E	60	110	22	1.5	1.5	96200	105600	5000	6000	0.92947
	NF312	60	130	31	2.1	2.1	124800	127800	4500	5400	1.869
	NF312E	60	130	31	2.1	2.1	153100	162100	4100	4900	2.0267
	NF312E/C3	60	130	31	2.1	2.1	153500	164600	4100	4900	2.0267
	NU312E	60	130	31	2.1	2.1	135900	96000	4100	4900	1.99332
	NJ312E	60	130	31	2.1	2.1	153100	162100	4100	4900	2.035
	NUP312ENV/C3	60	130	31	2.1	2.1	185400	195200	4100	4900	1.892
	N2312E	60	130	46	2.1	2.1	225500	266700	4200	5000	2.9921
	NJ2312E	60	130	46	2.1	2.1	225500	266700	4200	5000	2.9822
65	N213	65	120	23	1.5	1.5	78800	87000	5000	6000	1.19
	NF213	65	120	23	1.5	1.5	78800	87000	5000	6000	1.205
	NJ213	65	120	23	1.5	1.5	78800	87000	5000	6000	1.22
	NJ213E	65	120	23	1.5	1.5	109900	122300	4500	5400	1.14046
	NU213	65	120	23	1.5	1.5	78800	87000	5000	6000	1.204
	NUP213E	65	120	23	1.5	1.5	109900	122300	5000	6000	1.16646
	NUP213EN/C4	65	120	23	1.5	1.5	109900	122300	4500	5400	1.16646
	NU313E	65	140	33	2.1	2.1	182800	194800	4000	4700	2.3738
	NJ313E	65	140	33	2.1	2.1	182800	195300	4000	4700	2.23005
	NJ313E/C2	65	140	33	2	2	182800	194800	4000	4700	2.4228
	NUP313ENV	65	140	33	2.1	2.1	212900	244900	4000	4700	2.2
70	N214	70	125	24	1.5	1.5	82100	93500	4800	5700	1.1377
	NF214	70	125	24	1.5	1.5	82100	93500	4800	5700	1.1734
	NF214E/C3	70	125	24	1.5	1.5	123600	144500	4800	5700	1.27412
	NF214E/YB2	70	125	24	4.3	1.5	121000	140700	4500	5400	1.27412
	NJ214	70	125	24	1.5	1.5	82100	93500	4800	5700	1.203
	NJ214E	70	125	24	1.5	1.5	121000	140700	4500	5400	1.27262
	NU214	70	125	24	1.5	1.5	82100	93500	4800	5700	0.845
	NUP214E	70	125	24	1.5	1.5	121000	140700	4500	5400	1.306
	NF314E	70	150	35	2.1	2.1	207100	226000	3700	4400	2.989
	NU314E	70	150	35	2.1	2.1	207100	226000	3700	4400	2.94617
	NJ314E	70	150	35	2.1	2.1	207100	226000	3700	4400	3.00217
	NJ314E/C9	70	150	35	2.1	2.1	207100	226000	3700	4400	3.00217
	NUP314ENV/C4	70	150	35	2.1	2.1	236300	253300	3700	4400	3.02202
	NJ2314VH	70	150	51	2.1	2.1	335000	455000	3700	4400	4.3467
75	N215	75	130	25	1.5	1.5	95100	108900	4500	5400	1.2043
	NF215	75	130	25	1.5	1.5	95100	108900	4500	5400	1.2403
	NJ215	75	130	25	1.5	1.5	95100	108900	4500	5400	1.2489
	NU215	75	130	25	1.5	1.5	95100	108900	4500	5400	1.2178
	NU215E	75	130	25	1.5	1.5	132200	160500	4200	5000	1.3242
80	N216	80	140	26	2	2	118600	141600	4200	5000	1.72
	NJ216	80	140	26	2	2	108500	125900	4200	5000	1.79
	NU216	80	140	26	2	2	118600	141600	4200	5000	1.75
85	NJ217	85	150	28	2	2	122800	144000	4000	4700	2.17

Cylindrical roller bearings are suitable for large and medium-sized electric motors, locomotive vehicles, machine tool spindles, internal combustion engines, generators, gas turbines, reducers, steel rolling mills, vibrating screens, and lifting and transportation machinery, etc.

Product Description

The rolling body is a centripetal rolling bearing of a cylindrical roller. The internal structure of cylindrical roller bearings adopts rollers arranged in parallel,and a spacer or isolation block is installed between the rollers,which can prevent the tilt of the rollers or the friction between the rollers,and effectively prevent the increase of rotation torque.

Product name	Cylindrical roller bearings
Material	Bearing Steel
Standard	DIN GB ISO JIS
Bearing Package	Barreled,bagged,boxed,palletized or as customers’ requirement.
Service	OEM service provided
Delivery time	3-10 days depends on quantity needed

Characteristics:
Less friction and low noise, durable.
Ability to carry heavy loads
Less coefficient of friction.
High limiting speed.
Variations of structure:N,NU,NJ,NF,NUP,NFP,NH,NN,NNU,NNF,FC,FCD.

Physical Characteristics:
Cylindrical roller bearing can be separated by single row,double rows, and four rows.
This kind of bearing can be submitted to high radial load and some axial load.
The rolling element of a cylindrical roller bearing is cylinder, the two ends of the external lines have the corrective slope which can eliminate the contact stress.
NN and NNU design cylindrical roller bearing have high rigid and apply to machines such as milling

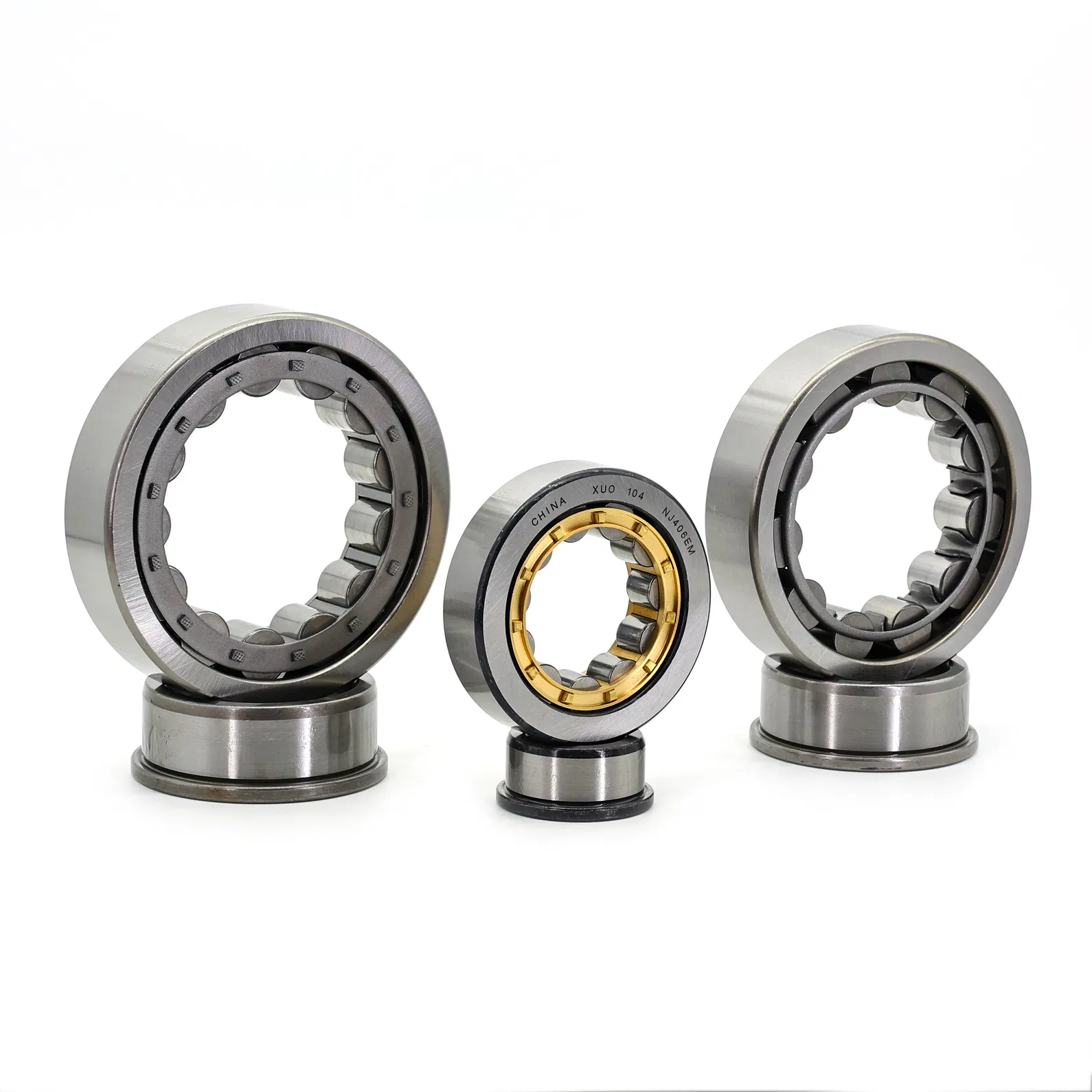

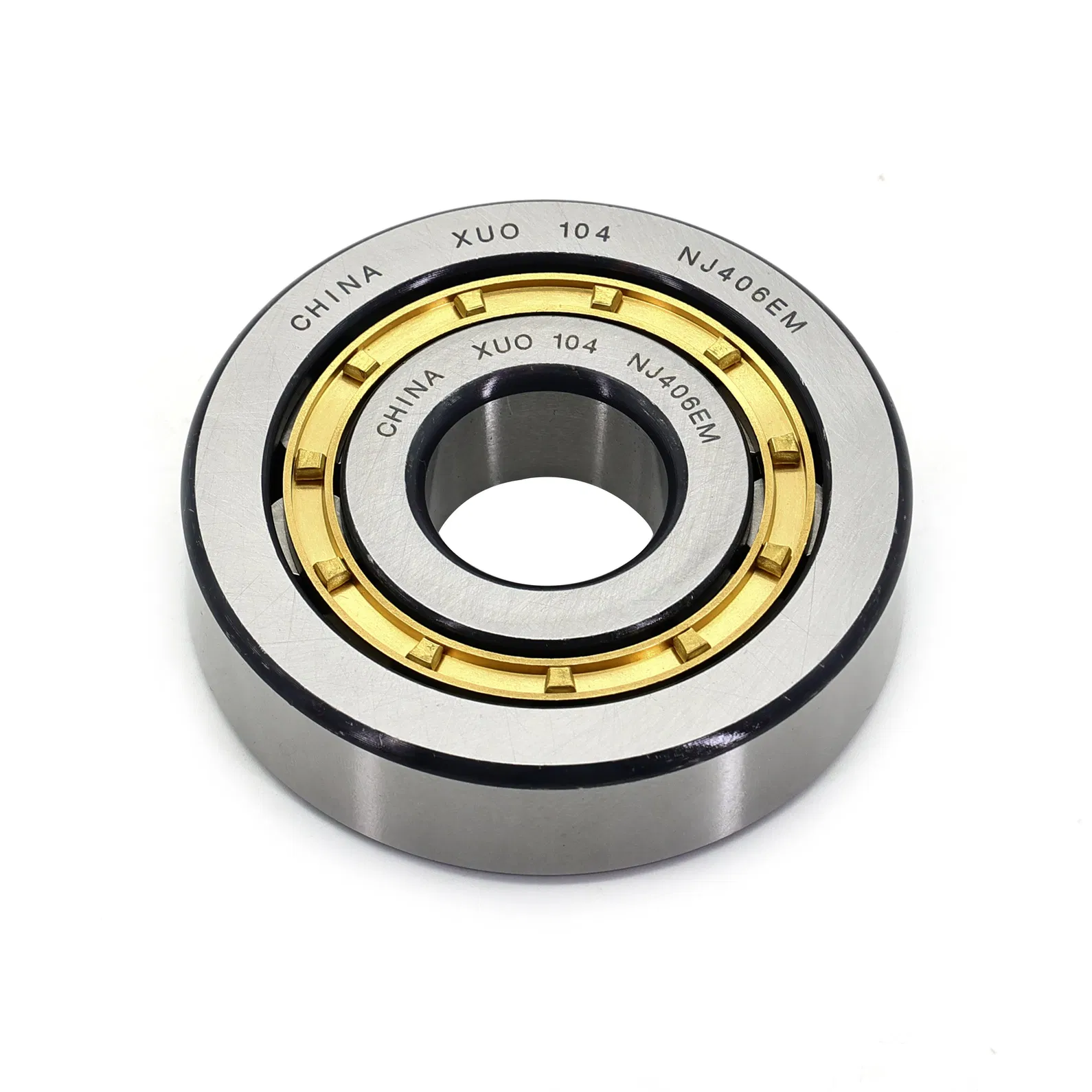

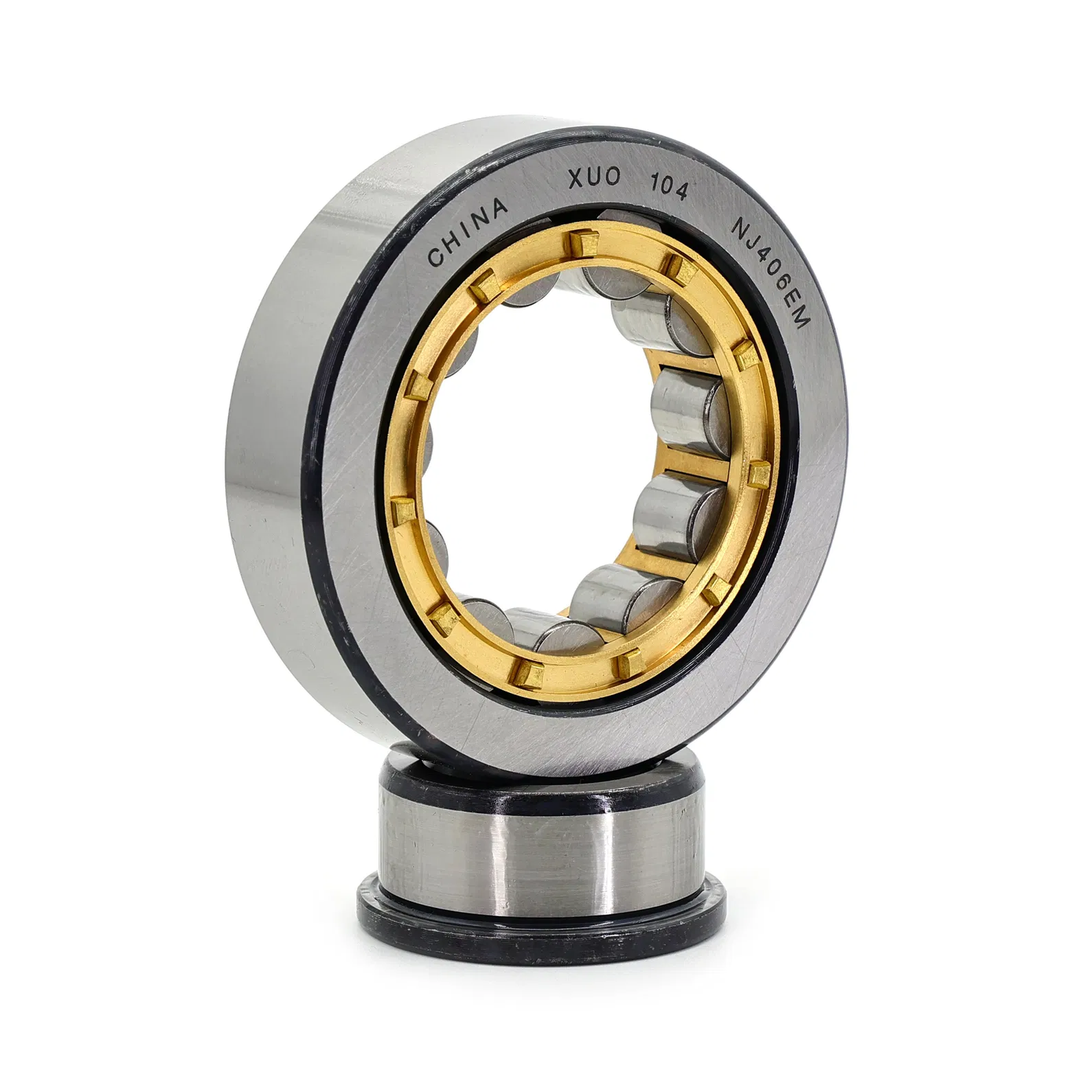

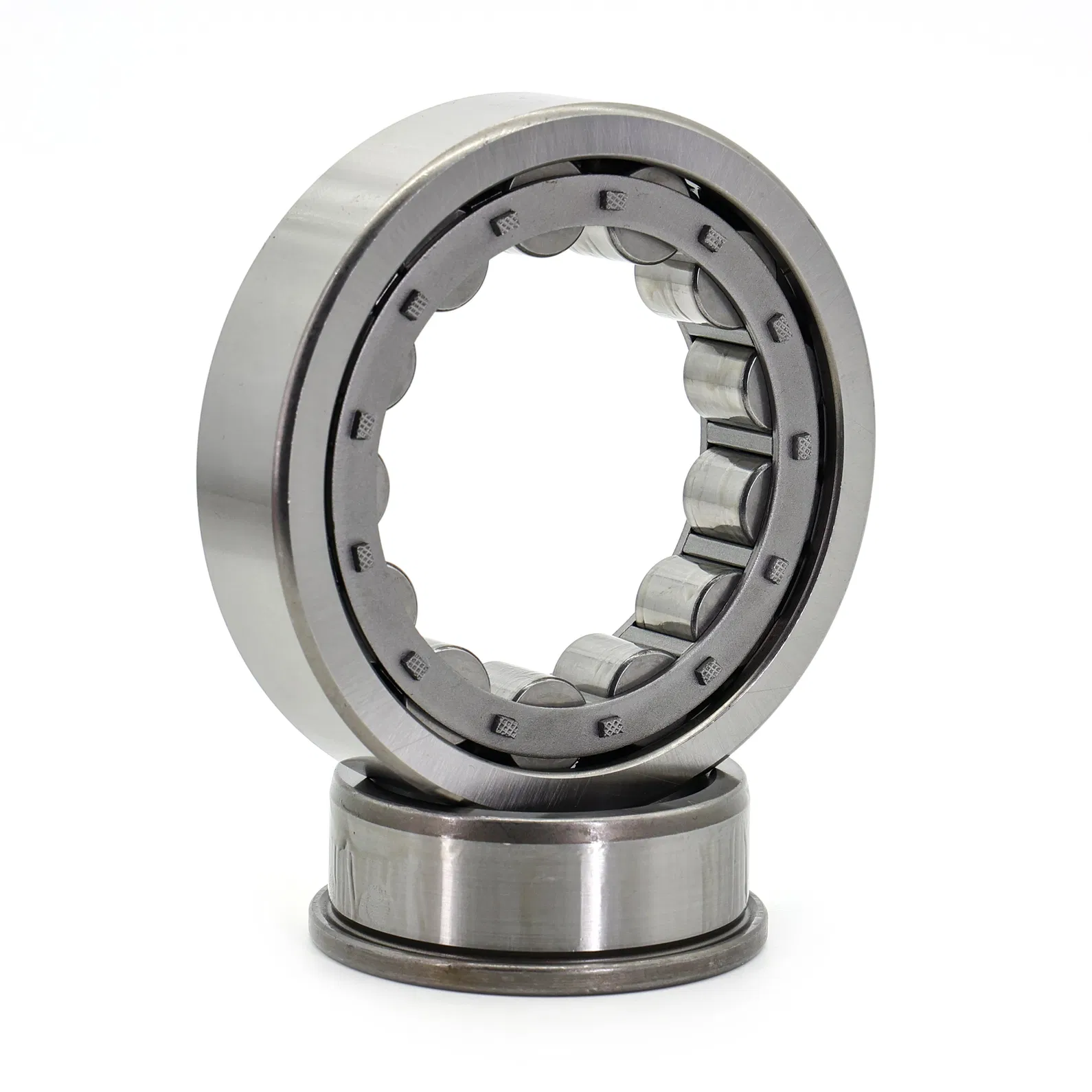

Detailed Photos

NSK Bearings SKF Bearings Ball Bearings Spherical Roller Bearings Roller Bearings

Product Category

Hot-Selling Products

Premium N204 Cylindrical Roller Bearings for Industrial Use Factory Direct Sales

ABOUT US

PRODUCTS

NEWS
