| Quantity: | |
|---|---|
Basic Info.
Model NO. | 7200 |
Material | Bearing Steel |
Keywords | Single Row Angular Contact Ball Bearing |
Sample | Available |
Specification | 10*30*9mm |
Origin | Shandong,Liaocheng,China |
Production Capacity | 500000 |
Rows Number | Single |
Lubrication | Grease or Oil |
Seal Type | Open |
Transport Package | Standard Packaging or Customized |
Trademark | WSFA |
HS Code | 8482102000 |
Packaging &Delivery
Package Size | 30.00cm * 50.00cm * 30.00cm |
Package Gross Weight | 0.300kg |
Roduct Description

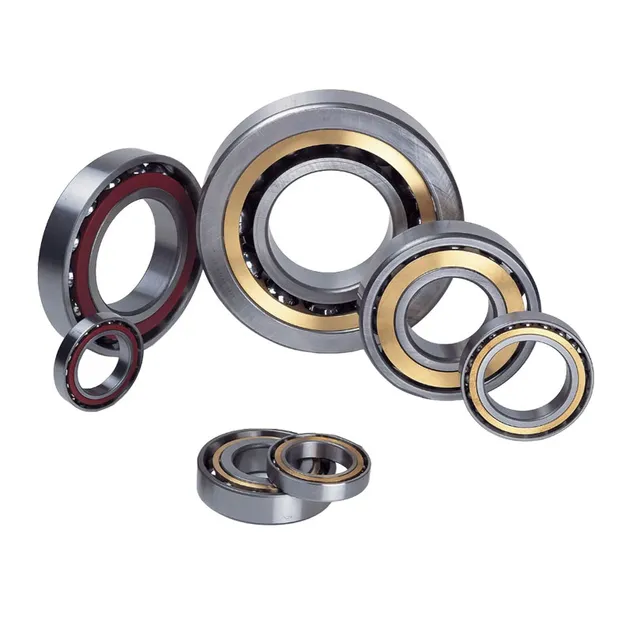

Angular Contact Ball Bearings: Functions & Applications
Angular contact ball bearings are engineered to withstand both radial and single - direction axial loads simultaneously. Their contact angle (ranging typically from 15° to 40°) directly enhances axial load - bearing capacity, with larger angles delivering stronger axial load resistance. These bearings excel in high - speed operations while maintaining rotational precision.
Key Applications: Widely used in machine tool spindles, electric motors, pumps, compressors, automotive transmissions, and aerospace components where high precision and combined load resistance are required.
Specification
Angular Contact Ball Bearings - E-Commerce Selling Points (Concise English Version)
1.Dual Load Resistance
Handles radial + single-direction axial loads; 15°/25°/40° angles for tailored durability.
2.High Precision & Speed
ISO P0-P2 grades; stable rotation for high-speed equipment (spindles, motors).
3.Flexible Compatibility
Open/ZZ/2RS sealing; grease/oil lubrication; -30°C~150°C working range.
4.Standardized & Easy to Install
ISO 355 models (7205/7308/7010); fits global shafts/housings.
5.Multi-Scenario Use
Ideal for machine tools, pumps, automotive & aerospace applications.
CTA: Bulk discounts + fast global shipping! Contact us for quotes.
 |  |  |
Angular contact ball bearing model
(Custom configurations available upon request.)
Brand | Model | Bore Diameter *d* (mm) | Outer Diameter *D* (mm) | Width *B* (mm) | Contact Angle | Precision Class | Sealing Type | Key Features |
SKF | 7209BECBP | 45 | 85 | 19 | 40°(B) | P4 | Open | High-speed for CNC spindles |
SKF | 7308BECBM | 40 | 90 | 23 | 40°(B) | P4 | Open | Heavy-load for industrial pumps |
SKF | 7012ACD/P4A | 60 | 95 | 18 | 25°(AC) | P4 | Open | Ultra-precision for aerospace motors |
NSK | 7305A | 25 | 62 | 17 | 30°(A) | P0-P5 | Open | 10000 rpm for small motors |
NSK | 7215A | 75 | 130 | 25 | 30°(A) | P0-P5 | Open | High-torque for automotive gearboxes |
NSK | 7019CTYNSULP4 | 95 | 145 | 24 | 15°(C) | P4 | 2RS | Dust-proof for workshop equipment |
7009AC | 45 | 75 | 16 | 25°(AC) | P0-P6 | Open | Cost-effective for conveyors | |
71916C | 80 | 110 | 16 | 15°(C) | P5 | Open | Light-load high-speed for textile machines | |
7318B.MP.UA | 90 | 190 | 43 | 40°(B) | P6 | ZZ | High-temperature resistant fans | |
NTN | 7010 | 50 | 80 | 16 | 15°(C) | P0-P6 | Open | ABEC 7 stable rotation |
NTN | 7210 | 50 | 90 | 20 | 15°(C) | P0-P6 | Open | Durable for agricultural machinery |
NTN | 7024CG/GLP4 | 120 | 180 | 28 | 15°(C) | P4 | Open | Heavy-duty machine tools |
KOYO | 7236AC | 180 | 320 | 52 | 25°(AC) | P0-P6 | Open | Large-scale industrial equipment |
KOYO | 7312BEGB | 60 | 130 | 31 | 40°(B) | P5 | 2RS | Construction machinery |
KOYO | 7014C | 70 | 110 | 20 | 15°(C) | P0-P5 | Open | Electric generator sets |
TIMKEN | 2MM9106WI | 30 | 55 | 13 | 15°(C) | P4 | Open | Ultra-precision medical equipment |
TIMKEN | 7218C | 90 | 160 | 30 | 15°(C) | P6 | ZZ | Automotive alternators |
THK | 7015C/P4 | 75 | 115 | 20 | 15°(C) | P4 | Open | High-rigidity robotics arms |
7206-B-2RS-TVP | 30 | 62 | 16 | 40°(B) | P6 | 2RS | Low-noise household appliances | |
71908-C-TVP | 40 | 62 | 12 | 15°(C) | P5 | Open | High-speed precision instruments | |
IKO | 7310C | 50 | 110 | 27 | 15°(C) | P0-P6 | Open | Heavy-load mining machinery |
IKO | 7007AC | 35 | 62 | 14 | 25°(AC) | P0-P5 | ZZ | Dust-proof for outdoor equipment |
HRB | 7208C | 40 | 80 | 18 | 15°(C) | P5 | Open | CNC machine tool accessories |
ZWZ | 7311AC | 55 | 120 | 29 | 25°(AC) | P6 | 2RS | Marine engineering equipment |
LYC | 7011C | 55 | 90 | 18 | 15°(C) | P0-P5 | Open | General mechanical equipment |

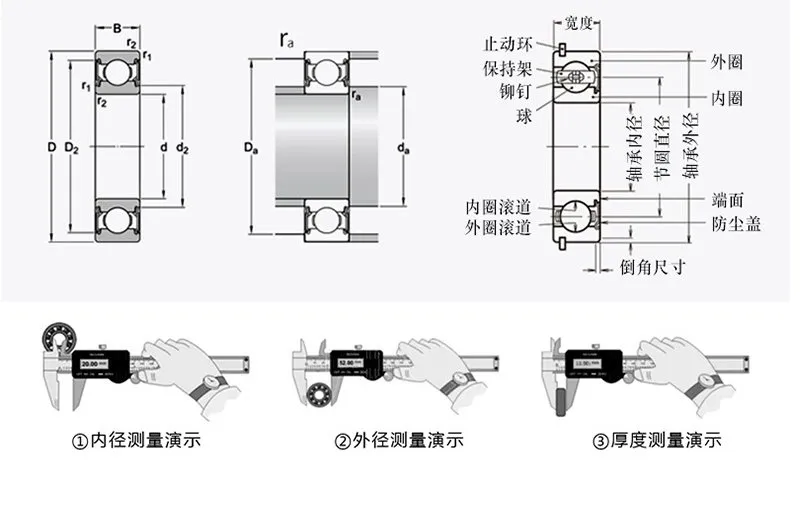

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
