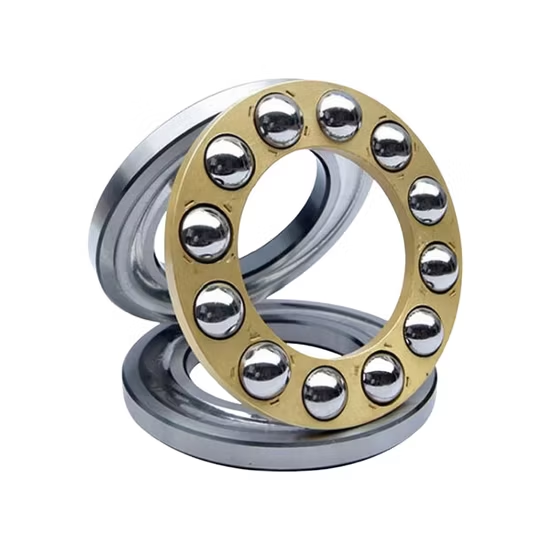

Premium Low-Noise Thrust Ball Bearings for Industrial Machinery and Automotive Applications

More >>
video

Durable Factory-Produced 23034ca Spherical Roller Bearing for Industry

More >>
video

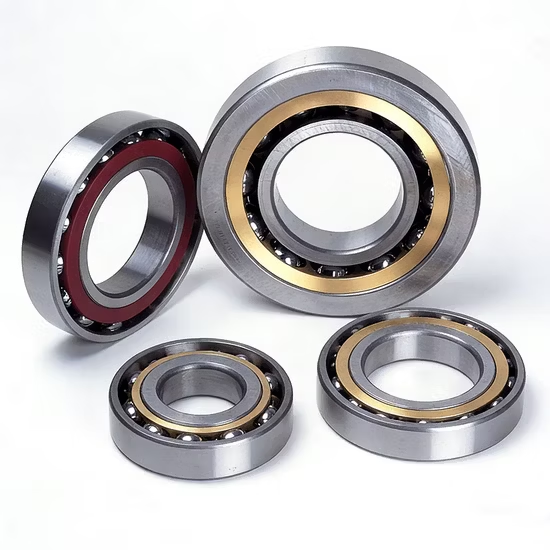

High Precision Durable Reliable Angular Contact Ball Bearing for CNC Machine Tools

More >>
video

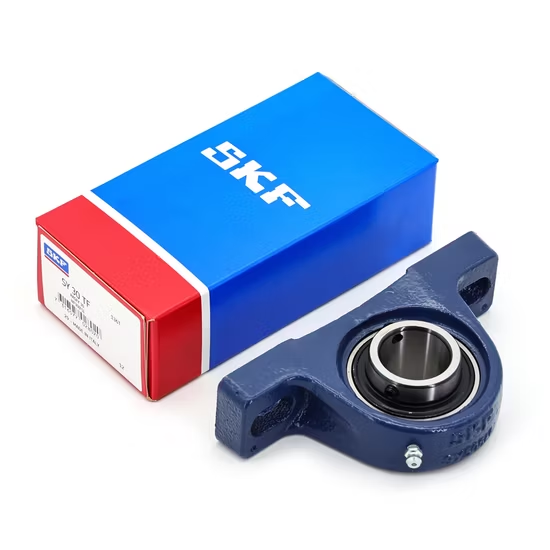

Heavy Duty Shock Resistant Sturdy Bearing Block for Mining Machinery Tools

More >>

Durable Factory-Produced 23034ca Spherical Roller Bearing for Industry

Share to:

Durable Factory-Produced 23034ca Spherical Roller Bearing for Industry

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.	23034CA
Applicable	Industries. Car. Fan. Gearbox
Sample	Available
Specification	17026067mm
Origin	China
Production Capacity	500000

Feature	Long Life,High Speed,Low Noise
Customerized	Available
Transport Package	Carton Pallet
Trademark	WSFA
HS Code	8482102000

Packaging &Delivery

Package Size	19.00cm * 26.00cm * 8.70cm
Package Gross Weight	13.000kg

Product Description

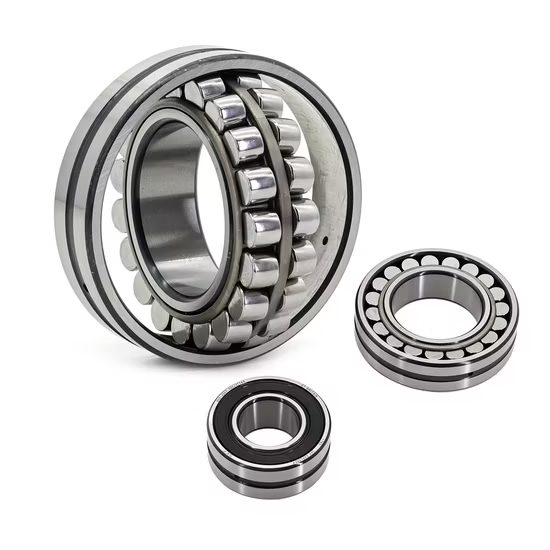

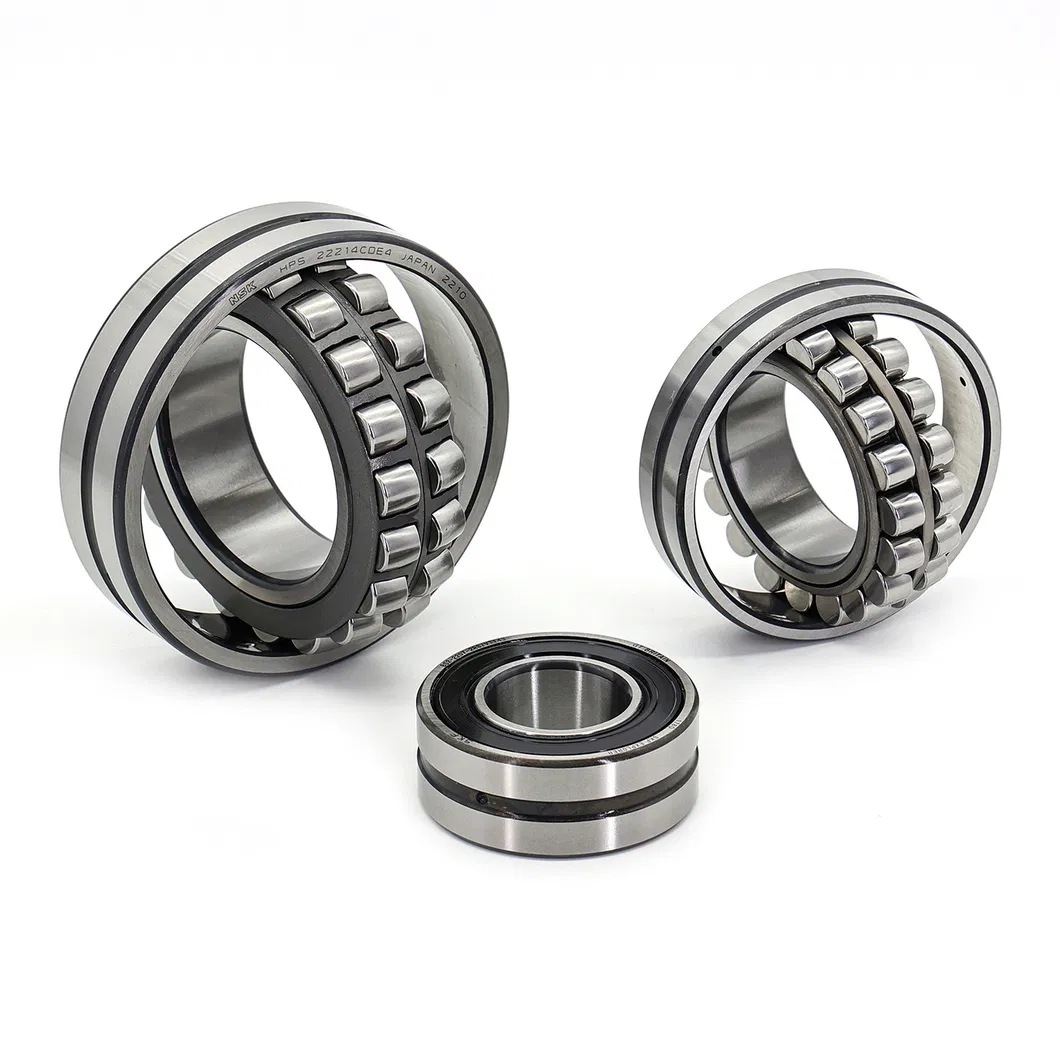

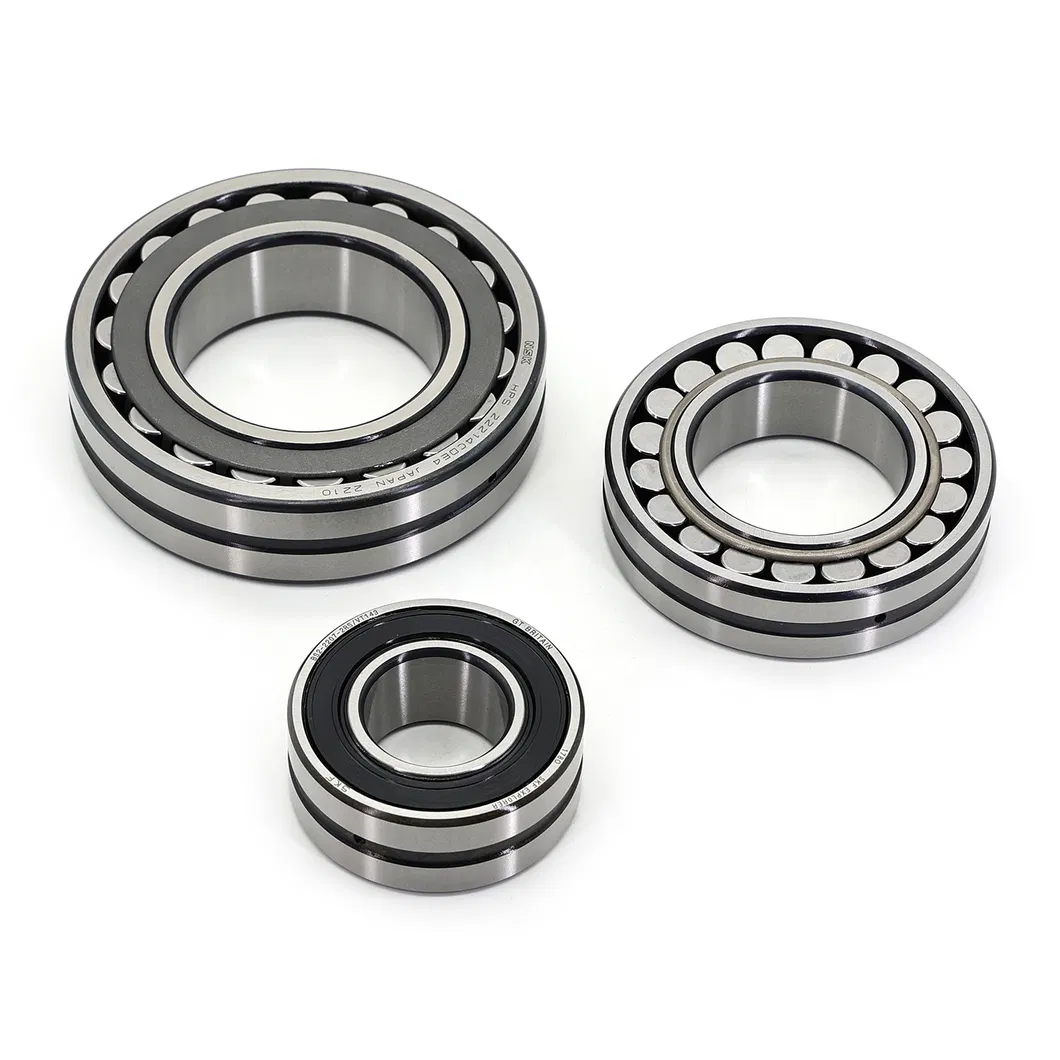

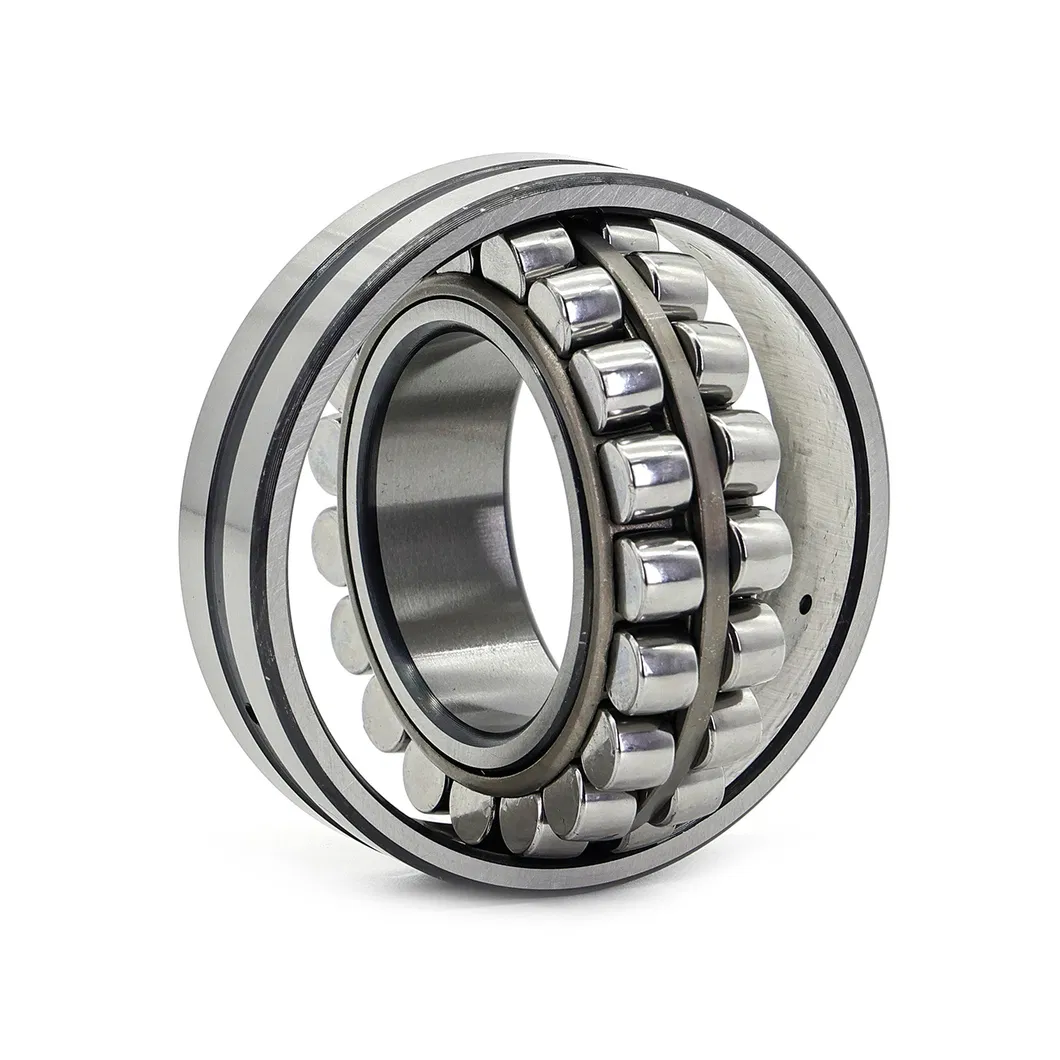

Detailed Photos

Product Name	Spherical Roller Bearings - All Sizes
Model	21300, 22200, 22300, 23000, 23100, 23200 series
Material	Chrome Steel/GCr15 Stainless Steel	Certificate	ISO9001:2001
Bore Size	20-1000mm	Outer Diameter	47-1800mm
Precision Rating	P5 P0 P6
Cage	Steel Cage /Copper Cage /Nylon Cage
Seals Type	Open / Sealed (optional)
Characteristics	Self-aligning design allows for misalignment; High load capacity; Supports both radial and axial loads. Ideal for heavy-duty and shock-load conditions.
Application	Mining, cement, paper-making, steel mills, wind turbines, gearboxes, vibrating screens, etc.
Package	Plastic Bag+Paper Box+Carton+Pallet
Price	EXW FOB CFR CIF	Lead Time	7-14 days

The spherical roller bearing has a double row of rollers, with one common spherical raceway in the outer ring and two raceway in the inner ring and inclined at an Angle relative to the bearing axis. This ingenious structure makes it self-aligning, so it is not easy to be affected by the Angle of shaft and bearing box on the error or shaft bending, suitable for installation error or shaft deflection caused by Angle error. The bearing can bear radial load as well as bidirectional axial load.

Main items

Designation	Principal Dimension				(kN) Basic Load Ratings		(r/min) Speed ratings		Mass
	d	D	B	r min	Dynamic	Static	Grease	Oil	kg
23032	160	240	60	2.1	376	730	1500	1900	13.5
24032CA	160	240	80	2.1	636	1164	1100	1500	12.9
24132CA	160	270	109	2.1	1010	1700	700	900	25.4
22232K	160	290	80	3	805	660	1500	1900	23.5
22232/W33	160	290	80	3	658	1074	1350	1700	22.1
22332	160	340	114	4	1170	1730	800	1000	50.3
23034	170	260	67	2.1	450	900	1400	1800	14.7
23034K/W33	170	260	67	2.1	450	900	1400	1800	14.6
23034CA	170	260	67	2.1	615	580	1600	2000	14.2
24034CA/W33	170	260	90	2.1	810	820	1000	1400	17.8
23134	170	280	88	2.1	875	805	1200	1600	23
23134K/W33	170	280	109	2.1	1050	1020	670	850	24.8
22234	170	310	86	4	730	1230	1100	1500	27.6
23234CA	170	310	110	4	1160	1835	950	1300	37.1
22234CA	170	310	86	4	970	820	1300	1700	26.8
22334K	170	360	120	4	1200	2010	850	1200	59.8
23036	180	280	74	2.1	550	1100	1300	1600	19.5
23036K/W33	180	280	74	2.1	550	1100	1300	1600	19.3
24036	180	280	100	2.1	930	1510	850	1200	22.5
23136	180	300	96	3	700	1340	990	1400	27.1
23136N	180	300	96	3	700	1340	990	1400	26.4
24136CA/W33	180	300	118	3	1170	1130	630	800	33
22236	180	320	86	4	750	1300	1200	1500	28.6
23236CA	180	320	112	4	1250	2060	900	1200	39.6
22236CA/W33	180	320	86	4	1030	880	1300	1700	29.4
22336	180	380	126	4	1430	2210	800	1100	80.7
2638	190	280	67	2.5	542	978	1200	1500	13.7
23038K	190	290	75	2.1	626	1100	1200	1500	20.5
23038CA	190	290	75	2.1	765	735	1300	1700	16.9
24038CA	190	290	100	2.1	980	1000	950	1300	22.8
22238CAK	190	340	92	4	1070	1650	1200	1600	36
23238CA	190	340	120	4	1410	2300	850	1100	51
22338	190	400	132	5	1400	2440	760	1000	80.6
23040	200	310	82	2.1	655	1170	1100	1400	26.2
24040CA	200	310	109	2.1	1130	1170	900	1200	31.3
23140	200	340	112	3	930	1830	850	1200	50.9
24040CA	200	340	112	3	1350	1260	950	1300	43.6
24140CK30	200	340	140	3	1530	2700	560	700	52
22240	200	360	98	4	940	1630	1000	1400	44.7
22240CA/W33	200	360	98	4	1270	1110	1100	1500	44.5
22340K	200	420	138	5	1880	1620	850	1100	96
22340	200	420	138	5	1880	1620	850	1100	96
2644	220	320	76	3	758	1280	1000	1300	21.6
23044	220	340	90	3	960	990	1100	1500	28.8
23044CA	220	340	118	3	1070	1040	1100	1500	32
24044CA	220	340	118	3	1320	1370	850	1100	39
23144	220	370	120	4	1330	1330	900	1200	54.8
23144CA	220	370	120	4	1570	1520	900	1200	54.7
23144K	220	370	120	4	1330	1330	900	1200	54.8
22244	220	400	108	4	1200	2100	850	1200	57.6
23244	220	400	144	4	1800	2820	670	850	94.6
22344/W33	220	460	145	5	1700	3090	670	850	129
23948CA	240	320	60	2.1	635	710	1300	1700	14.9
23048	240	360	92	3	820	1800	900	1200	37.6
23048K/W33	240	360	92	3	820	1800	900	1200	37.4
23148	240	400	128	4	1200	2560	760	990	77.2
24148/W33	240	400	160	4	1200	3300	430	540	81.6
24148CAK30/W33	240	400	160	4	2020	2040	480	600	77.8
22248	240	440	120	4	1490	2370	800	1000	85
23248	240	440	160	4	2200	3460	600	760	128
22348K	240	500	155	5	1780	3140	600	760	154
22348K/W33	240	500	155	5	1780	3140	600	760	153
2650	250	365	87	3	950	1650	880	1100	32.2
23052K	260	400	104	4	1000	2180	810	1080	51.5
24052CA	260	400	1400	4	1780	1910	700	900	66.7
24052CAK/W33	260	400	140	4	1780	1910	700	900	65.2
23152	260	440	144	4	1950	2010	800	1000	92.8
23252CA/W33	260	480	174	5	2780	2660	630	800	147
22352	260	540	165	6	2840	2550	630	800	191.3
23056K	280	420	106	4	1100	2380	760	950	62
24056CA	280	420	140	4	2140	2410	670	850	69.2
23156CA	280	460	146	5	2300	2310	750	950	105
23156	280	460	146	5	1790	3300	670	850	95.5
22236CA/W33	280	500	130	5	2020	1800	750	950	118
23256	280	500	176	5	2470	4550	540	670	153
23256CA	280	500	176	5	2970	2910	600	750	147
22356	280	580	175	6	2680	4490	540	670	238
22356K/W33	280	580	175	6	2680	4490	540	670	238
23960CA/W33	300	420	90	3	1190	1320	950	1300	40.5
23060	300	460	118	4	1430	2740	720	900	75.2
24060CA/W33	300	460	160	4	2280	4600	540	670	101
23060CA/W33	300	460	118	4	1830	1880	800	1000	71.5
23160	300	500	160	5	2180	4030	600	760	134
24160CA/W33	300	500	200	5	3180	6100	324	400	159
22260CA	300	540	140	5	2620	2380	750	950	136
23260CA/W33	300	540	192	5	3300	3250	530	670	190
22260	300	540	140	5	2070	3250	670	850	143
23964K	320	440	90	3	1200	2210	600	750	45.1
23064K	320	480	121	4	1400	2920	720	900	81.5
24064CA	320	480	160	4	2380	2620	700	900	106
23164CAK	320	540	176	5	3150	3200	630	800	195
23264CA	320	580	208	5	3900	3900	500	630	251
23264CAK/W33	320	580	208	5	3900	3900	500	630	251
23968	340	460	90	3	1260	2360	810	1050	50.5
23068K	340	520	133	5	1620	3400	630	810	109
23068/W33	340	520	133	5	1620	3400	630	810	109
23068CA	340	520	133	5	2280	2390	700	900	114
23068CAK	340	520	133	5	2280	2390	700	900	111
24068CAK30	340	520	180	5	2870	3200	530	670	135
24068/W33	340	520	180	5	2436	5060	470	600	160
23972	360	480	90	3	1330	2510	760	990	49.1
23972CA	360	480	90	3	1700	1730	850	1100	46.6
23072	360	540	134	5	1750	3730	600	760	114
23072CA	360	540	134	5	2390	2530	670	850	126
24072CA/W33	360	540	180	5	3010	6350	500	630	148
23172K	360	600	192	5	2400	5350	500	630	222
24172	360	600	243	5	4300	7330	270	340	333
22372	360	750	224	7.5	4180	7500	280	360	494
22372CA	360	750	224	7.5	5400	4900	400	500	466
23976	380	520	106	4	1410	2670	720	900	73.5
23976CA/W33	380	520	106	4	1750	2100	800	1000	69.5
23076K	380	560	135	5	1750	3780	560	720	122
23076CA	380	560	135	5	2440	2690	630	800	130
24176CAK30/W33	380	560	180	5	3050	3550	190	260	153
23176	380	620	194	5	2680	5680	360	450	244
23176CA/W33	380	620	194	5	3900	4100	400	500	248
23176CAK/W33	380	620	194	5	3900	4100	400	500	241
23980CA/W33	400	540	106	4	1790	2160	750	950	72.4
2680	400	590	142	6	2290	4420	340	530	145
23080	400	600	148	5	2100	4570	540	670	165
23080CA	400	600	148	5	2820	3000	600	750	158
24080CA/W33	400	600	200	5	2840	3050	450	560	202
23180	400	650	200	6	3060	6670	340	430	239
23180CA	400	650	200	6	4100	4300	380	480	272
23280	400	720	256	6	5750	8420	310	390	530
22380	400	820	243	7.5	4650	8960	240	320	650
23084	420	620	150	5	2320	4570	400	500	159
23084CA	420	620	150	5	2970	3300	450	560	149
23184/W33	420	700	224	6	4170	8100	320	400	402
23284CA	420	760	272	7.5	6140	11250	320	400	659
23088	440	650	157	6	2450	5120	390	480	192
23188	440	720	226	6	4910	8710	310	390	420
23188/W33	440	720	226	6	4910	8710	310	390	419
23092	460	680	163	6	2520	5880	360	450	223
23092CA	460	680	163	6	3550	3850	400	500	226
23192CA	460	760	240	7.5	5750	6200	320	400	457
23192CAK/W33	460	760	240	7.5	5750	6200	320	400	452
23996	480	650	128	5	2240	4730	360	450	162
23096	480	700	165	6	2500	5730	340	430	231
23196CAK/W33	480	790	248	7.5	6150	6700	300	380	485
23296	480	870	310	7.5	6900	11500	230	310	837
239/500	500	670	128	5	2100	5020	360	450	135
239/500CA	500	670	128	5	2570	3200	400	500	120
230/500	500	720	167	6	3050	6400	340	430	238
230/500/W33	500	720	167	6	3050	6400	340	430	238
